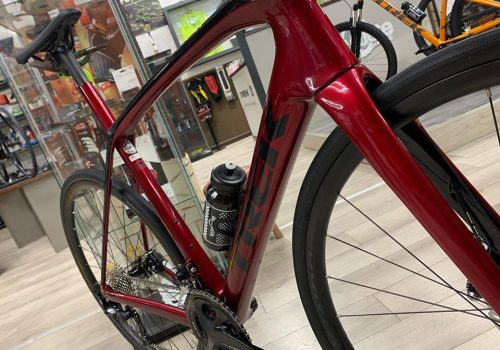

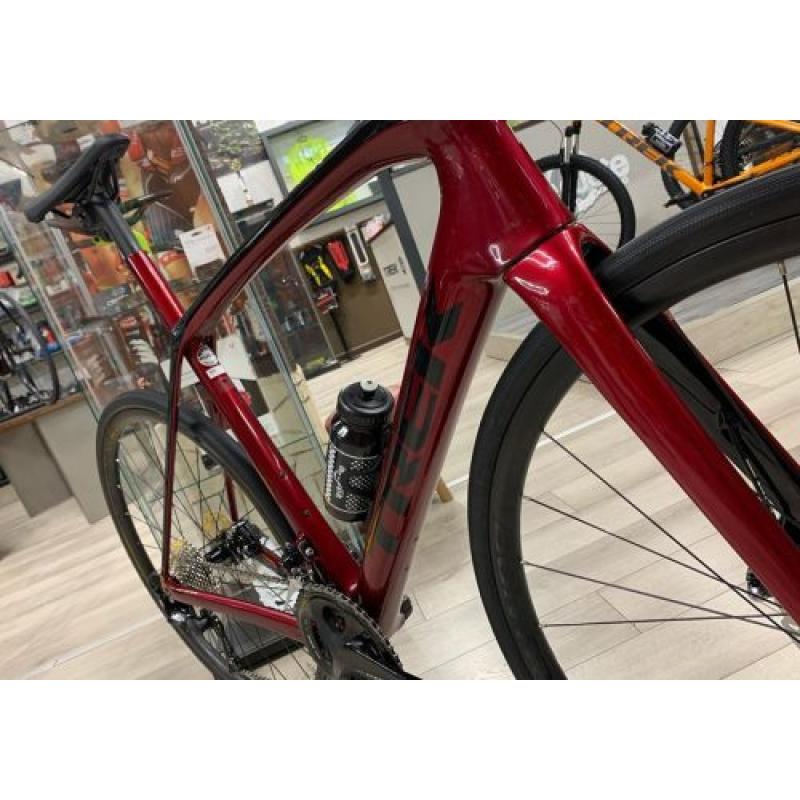

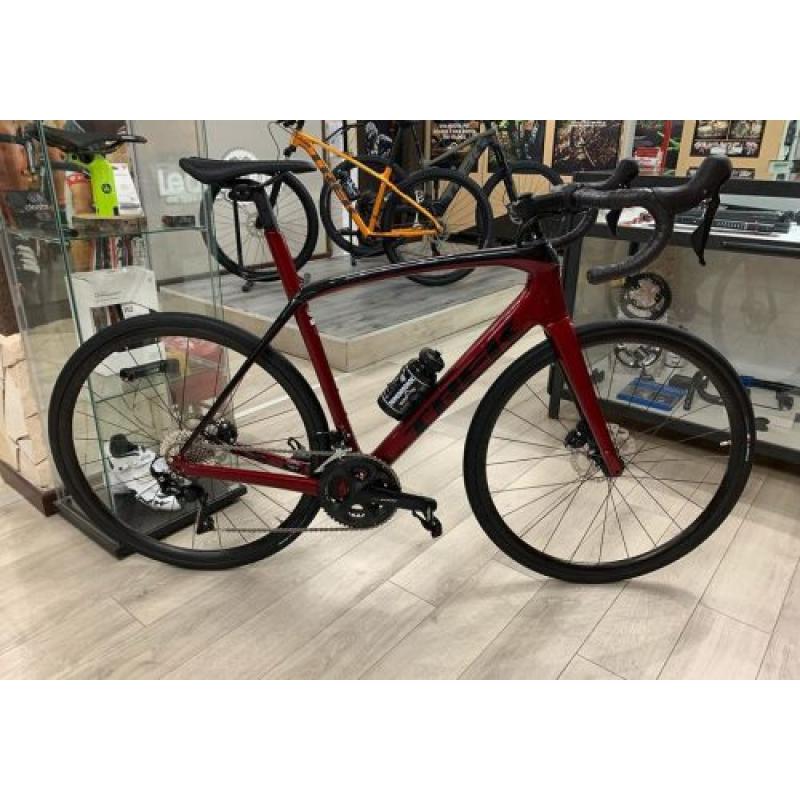

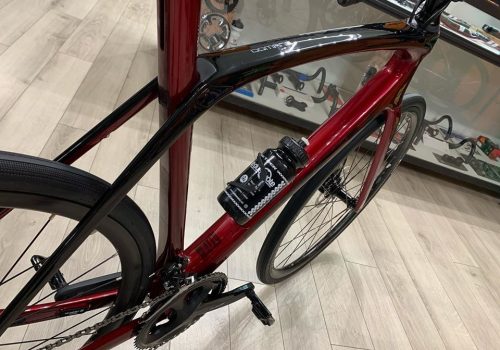

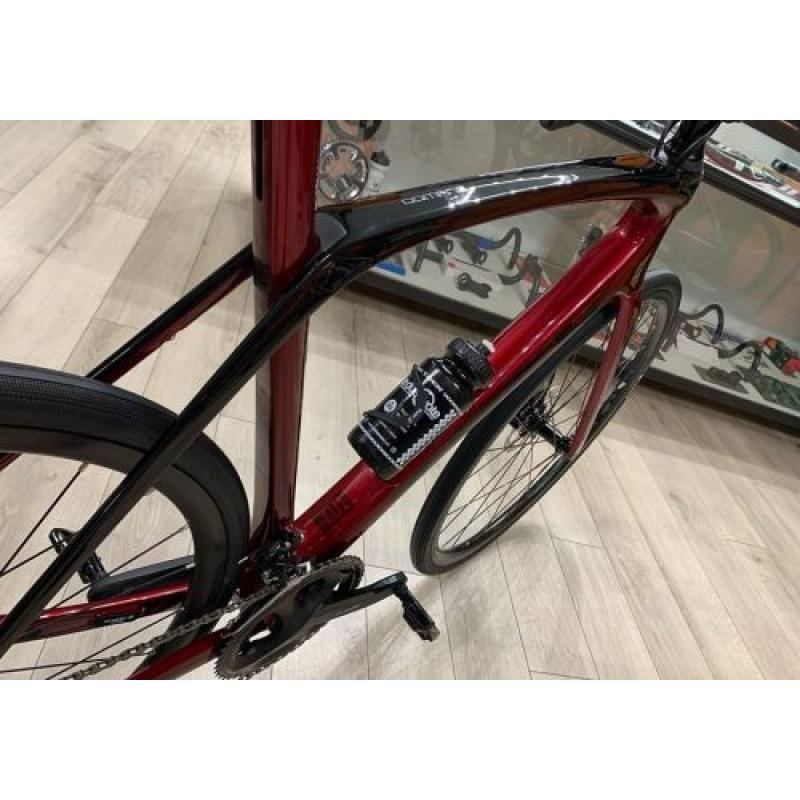

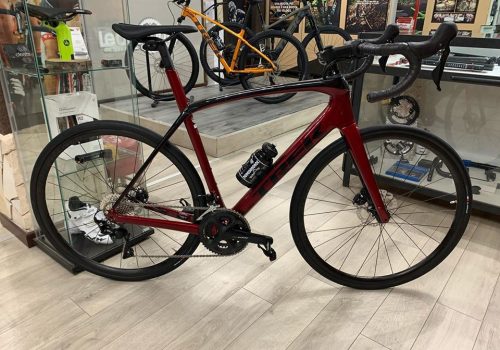

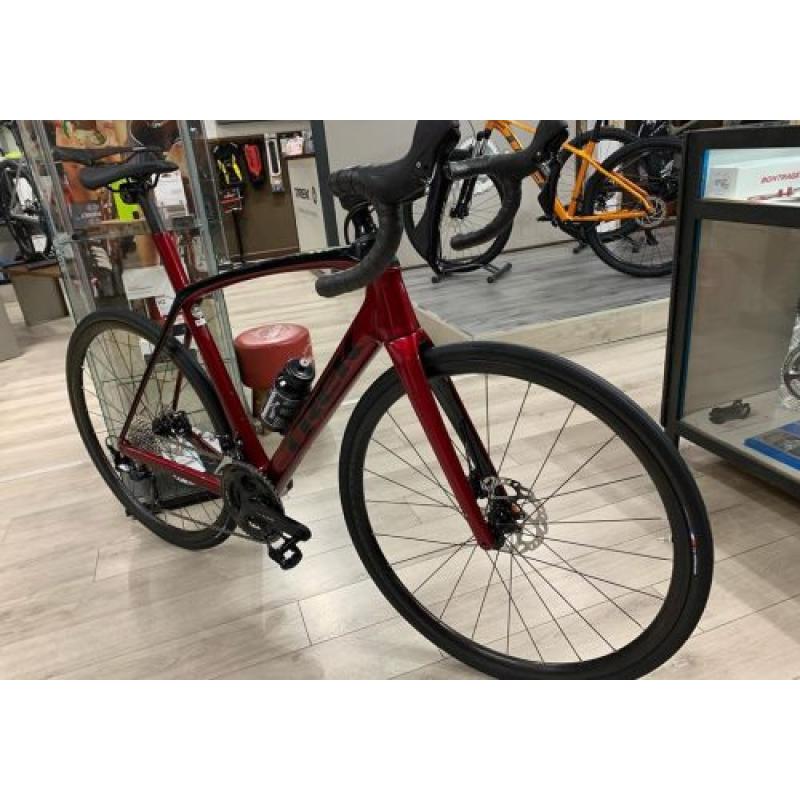

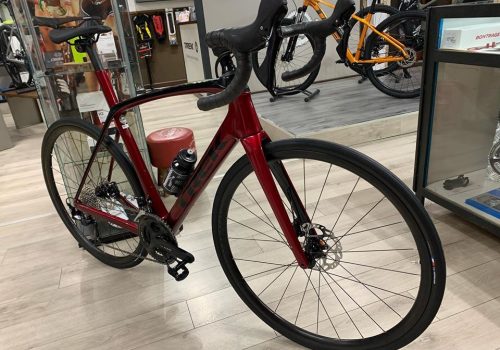

2020 TREK DOMANE SL 5 DISC

---

Frame Trek 500 Series OCLV carbon, front and rear IsoSpeed, BITS internal storage, tapered head tube, internal cable routing, micro-adjust seat mast, 3S chain keeper, DuoTrap S-compatible, mudguard mounts, flat-mount disc, 142x12mm thru- axle

Fork Trek Domane SL carbon, tapered carbon steerer, internal brake routing, mudguard mounts, flat-mount disc, 12x100mm thru-axle

Headset FSA Integrated, sealed cartridge bearing, 1-1 / 8 "top, 1.5" bottom

Bottom Bracket Praxis Works , T47 threaded, internal bearing

Stem Bontrager Elite, 31.8mm, Blendr-compatible, 7-degree

Handlebar Bontrager Comp VR-C, alloy, 31.8mm Front Derailleur Shimano 105 R7000, braze-on Rear Derailleur Shimano 105 R7000, Shadow design, long cage, 34t maximum cog

Front Brake Shimano 105 R7070 hydraulic disc

Rear Brake Shimano 105 R7070 hydraulic disc

Brake Levers Shimano 105 R7020

Shift Levers Shimano 105 R7020, 11-speed

Cassette Shimano 105 HG700- 11, 11-34, 11-speed
Chain Shimano 105 HG601, 11-speed
Crankset Shimano 105 R7000, 50/34 (compact)
Front Wheel Hub - Bontrager alloy, sealed bearing, Center Lock disc, 100x12mm thru-axle / rim - Bontrager Affinity Disc, tubeless-ready, 24-hole, 21mm width
Rear Wheel Hub - Bontrager alloy, sealed bearing, Center Lock, Shimano 11-speed freehub, 142x12mm thru axle / rim - Bontrager Affinity Disc, tubeless-ready, 24-hole, 21mm width
Front Tire Bontrager R1 Hard-Case Lite, wire bead, 60tpi, 700x32c, clincher
Rear Tire Bontrager R1 Hard-Case Lite, wire bead, 60tpi, 700x32c, clincher
Saddle Bontrager Arvada Comp, steel rails
Seatpost Bontrager carbon seat mast cap, integrated light mount, 20mm offset
Manufacturer Claimed Weight Size 56 - 9.78kg / 21.57 lbs
